Notes for the Google Cloud Platform Big Data and Machine Learning Fundamentals course.

https://www.coursera.org/learn/gcp-big-data-ml-fundamentals/home/welcome

https://console.cloud.google.com

WEEK 1

1. Google Cloud Architecture

-----------------------------------------
        2. Big Data/ML Products
-----------------------------------------
 1. Compute Power | Storage | Networking
-----------------------------------------
           0. Security
-----------------------------------------

-2. Abstract away scaling, infrastructure

-1. Process, store, and deliver pipelines, ML models, etc.

-0. Auth

2. Creating a VM on Compute Engine

2.1 Setting up the VM

1. https://cloud.google.com
2. Compute –> Compute Engine –> VM Instances
3. Create a new VM

3.1 Allow full access to cloud APIs

3.2 Since we will access the VM through SSH, we don’t need to allow HTTP or HTTPS traffic

1. Click SSH to connect

At this stage, the new VM has no software.

We can just install stuff like normal:

sudo apt-get install git

(APT: advanced package tool, package manager)

2.2 Sample earthquake data

After installing git, we can pull down the data from our repo:

git clone https://www.github.com/GoogleCloudPlatform/training-data-analyst

Course materials are in:

training-data-analyst/courses/bdml_fundamentals

Go to the Earthquake sample in earthquakevm.

The ingest.sh shell script contains the script to ingest data (less ingest.sh). This script basically just deletes existing data and then wgets a new CSV file containing the data.

Now, transform.py contains a Python script to parse the CSV file and create a PNG from it using matplotlib ( matplotlib notes).

(File details)

Run ./install_missing.sh to get the missing Python libraries, and run the scripts mentioned above to get the CSV and generate the image.

2.3 Transferring the data to bucket storage

Now, since we have generated the image. Let’s get it off the VM and delete the VM.

To do this, we need to create some storage: Storage > Storage > Browser > Create Bucket

Now, to view our bucket, we can use:

gsutil ls gs://[bucketname] (hence why bucket names need to be globally unique)

To copy out data to the bucket, we can use:

gsutil cp earthquakes.* gs://[bucketname]

2.4 Stopping/deleting the VM

So now we’re finished with our VM, we can either:

STOP Stop the machine. You will still pay for the disk, but not the processing power.

DELETE Delete the machine. You won’t pay for anything, but obviously you will lose all of the data.

2.5 Viewing the assets

Now, we want to make our assets in storage publically available. To do this: Select Files > Permissions > Add Members > allUsers > Grant Storage Object Viewer role.

Now, you can use the public link to view your assets.

What we did so Far :

• Create a VM
• Install git, python
• Download the data from a website
• Run the python code
• Upload the new files from the VM to the cloud storage
• Stop the VM
• Consult the files

3. Elastic Cloud Storage

There are 4 storage types:

1. Multiregional: Optimized for geo-redundancy, end-user latency
2. Regional: High performance local access (common for data pipelines you want to run, rather than give global access)
3. Nearline: Data accessed less than once a month
4. Coldline: Data accessed less than once a year

4. Edge Network (networking)

Edge node receives the user’s request and passes to the nearest Google data center.

Consider node types (Hadoop):

1. Master node: Controls which nodes perform which tasks. Most work is assigned to…
2. Worker node: Stores data and performs calculations
3. Edge node: Facilitate communication between users and master/worker nodes

Edge computing: brings data storage closer to the location where it’s needed. In contrast to cloud computing, edge computing does decentralized computing at the edge of the network.

Edge Node (aka. Google Global Cache – GGC): Points close to the user. Network operators and ISPs deploy Google servers inside their network. E.g., YouTube videos could be cached on these edge nodes.

Edge Point of Prescence: Locations where Google connects its network to the rest of the internet.

https://peering.google.com/#/

5. Security

Use Google IAM (Identiy and access management), etc. to provide security.

BigQuery data is encrypted.The encryption key is then also encrypted.

6. Big Data Tool History

1. GFS: Data can be stored in a distributed fashion
2. MapReduce: Distributed processing, large scale processing across server clusters. Hadoop implementation
3. BigTable: Record high volume of data
4. Dremel: Breaks data into small chunks (shards) and compresses into columnar format, then uses query optimizer to process queries in parallel (service auto-manages data imbalances and scale)
5. Colossus, TensorFlow: And more…

(Note on Columnar Databases)

Consider typical row-oriented databases. The data is stored in a row. This is great when you want to query multiple columns from a single row.

However, what if you want to get all of the data from all rows from a single column?

For this, we need to read every row, picking out just the columns we want. For example, we want the average age of all the people. This will be slower in row-oriented databases, because even an index on the age column wouldn’t help. The DB will just do a sequential scan.

Instead we can store the data column-wise. How does it know which columns to join together into a single set? Each column has a link back to the row number. Or, in terms of implementation, each column could be stored in a separate file. Then, each column for a given row is stored at the same offset in a given file. When you scan a column and find the data you want, the rest of the data for that record will be at the same offset in the other files.

Row oriented

RowId 	EmpId 	Lastname 	Firstname 	Salary
001 	10 	Smith 	        Joe      	40000
002 	12 	Jones 	        Mary 	        50000
003 	11 	Johnson 	Cathy 	        44000
004 	22 	Jones 	        Bob 	        55000

Column oriented

10:001,12:002,11:003,22:004;
Smith:001,Jones:002,Johnson:003,Jones:004;
Joe:001,Mary:002,Cathy:003,Bob:004;
40000:001,50000:002,44000:003,55000:004;

In terms of IO improvements, if you have 100 rows with 100 columns, it will be the difference between reading 100×2 vs. 100×100.

It also becomes easier to horizontally scale — make a new file to store more of that column.

It is also easier to add a column — just add a new file.

Lab 1

Public datasets

Go to BigQuery > Resources > Add Data > Explore public datasets to add publically available datasets.

You can query the datasets using SQL syntax:

SELECT
  name, gender,
  SUM(number) AS total
FROM
  `bigquery-public-data.usa_names.usa_1910_2013`
GROUP BY
  name, gender
ORDER BY
  total DESC
LIMIT
  10

Before you run the query, the query validator in the bottom right will show much data is going to be run.

Creating your own dataset

Resources seem to have the following structure:

Resources > Project > Dataset > Table

To add your own dataset:

Resources > click Project ID > Create dataset (For example babynames)

Then, we can add a table to this dataset.

Click dataset name > Create table

• Source > upload from file
• File format > CSV
• Table name > names_2014
• Schema > name:string,gender:string,count:integer

Creating the table will run a job. The table will be created after the job completes.

Click preview to see some of the data.

Then you can query the table like before.

SQL Syntax for BigQuery: https://cloud.google.com/bigquery/docs/reference/standard-sql/

7. GCP Approaches

Google Cloud Platform applications:

1. Compute Engine: Infrastructure as a service. Run virtual machines on demand in the cloud.
2. Google Kubernetes Engine (GKE): Clusters of machines running containers (code packages with dependencies)
3. App Engine: Platform as a service (PaaS). Run code in the cloud without worrying about infrastructure.
4. Cloud Functions: Serverless environment. Functions as a service (FaaS). Executes code in response to events.

App Engine: long-lived web applications that auto-scale to billions of users.

Cloud functions: Code triggered by event, such as new file uploaded.

Serverless

Although this can mean different things, typically it now means functions as a service (FaaS). I.e., application code is hosted by a third party, eliminating need for server and hardware management. Applications are broken into functions that are scaled automatically.

8. Recommendation Systems

A recommendation system requires 3 things:

• Data
• Model
• Training/serving infrastructure

Point: Train model on data, not rules.

RankBrain

ML applied to Google search. Rather than use heuristics (e.g., if in California and q=’giants’, show California giants), use previous data to train ML model and display results.

Building a recommendation system

1. Ingest existing data (input and output, e.g., user ratings of tagged data)
2. Train model to predict output (e.g., user rating)
3. Provide recommendation: rate all of the unrated products, show top n.

Ratings will be based on:

1. Who is this user like?
2. Is this a good product? (other ratings?)
3. Predicted rating = user-preference * item-quality

Models can typically be updated once a day or once a week. It does not need to be streaming. Once computed, the recommendations can be stored in Cloud SQL.

So compute the ratings use a batch job (Dataproc), and store them in Cloud SQL.

Storage systems

Roughly:

1. Cloud Storage: Global file system (unstructured)
2. Cloud SQL: Relational database (transactional/relational data accessed through SQL) (structured/transactional) 2.1 Cloud Spanner: Horizontal scalability (+ more than a few GBs, need a few DBs)
3. Datastore: Transactional, NoSQL object-oriented database (structured/transactional)
4. Bigtable: High throughput, NoSQL, append-only data (not transactional) (millisecond latency analytics)
5. BigQuery: SQL data warehouse to power analytics (seconds latency analytics)

Hadoop Ecosystem

1. Hadoop: MapReduce framework (HDFS)
2. Pig: Scripting language that can be compiled into MapReduce jobs
3. Hive: Data warehousing system and query language. Makes data on distributed file system look like an SQL DB.
4. Spark: Lets you run queries on your data. Also ML, etc.

Storage

HDFS is used for working storage — storage during the processing of the job. But all input and output data will be stored in Cloud Storage. So because we store data off-cluster, the cluster only has to be available for a run of the job.

(Recall, you can shut down the compute nodes when not using them, so save your data in Cloud Storage, etc., instead of in the computer node disk.)

Lab 2

Creating Cloud SQL DBs

First, let’s create a Cloud SQL instance to hold all of the recommendation data:

SQL > Create Instance > MySQL > Instance ID = 'rentals'

Now the script creates 3 tables:

• Accomodation: Basic details
• Rating: 1-to-many for accomodation to ratings and user-to-ratings
• Recommendation: This will be populated by the recommendation engine

Connect to this instance > Connect using Cloud Shell

An sql connect command will prepopulate to connect to the DB, so you can now run commands as required.

Use show databases; to show the registered DBs.

Run the script to create the recommendation_spark database and underlying tables.

Ingesting Data

Now, before we can populate the Cloud SQL tables we just created, we need to stage the CSV files containing the data on Cloud Storage. To do this, we can either use Cloud Shell commands or the Console UI.

Using Console UI:

Storage > Browser > Create Bucket > Upload CSV files

Now, click the Import function on the Cloud SQL page to populate the SQL tables from the CSV files.

After querying the SQL tables to make sure they populated correctly, type Exit to exit.

Dataproc

Now we will ue Dataproc to train the ML model based on previous ratings.

We need to launch Dataproc and configure it so each machine in the cluster can access Cloud SQL.

Dataproc let you provision Apache Hadoop clusters.

After provisioning your cluster, run a bash script to patch each machine so that its IP is authorized to access the Cloud SQL instance.

Copy over the Python recommendation model.

You edit code via Cloud Shell by using: cloudshell edit train_and_apply.py

Now run the job via Dataproc:

Dataproc console > Jobs > Submit job > Enter file containing job code/set parameters

The job will run through to populate the recommendations.

What we did:

• Created a fully-managed Cloud SQL instance for rentals
• Created tables and explored the schema with SQL
• Ingested data from CSVs
• Edited and ran a Spark ML job on Cloud Dataproc
• Viewed prediction results

Exam

Cloud SQL is a transaction RDBMS or relational database management system. It is designed for many more WRITES than READS.

Whereas BigQuery is a big data analytics warehouse which is optimized for reporting READS.

9. BigQuery

Petabyte data warehoue. Two services in one:

• SQL Query Engine (serverless — fully managed)
• Managed data storage
• Pay for data stored and queries run, or flat tier
• Analysis engine: takes in data and run analysis/model building
• Can connect to BigQuery from other tools

Sample Query

Cloud console > Big Query > Create dataset > Create table (can upload from storage, etc.)

When writing queries, use the following format:

FROM [project (name? or id?)].[dataset].[table]

E.g.:

SELECT COUNT(*) AS total_trips
FROM `bigquery-public-data.san_francisco_bikeshare.bikeshare_trips`

(Click on this query to view the table info)

Click the down arrow > Run selected to just run the selected part of the query

Architecture

BigQuery Tips

• Ctrl/cmd-click on table name: view table
• In details, click on field name to insert it into the query
• Click More > Format to automatically format the query
• Explore in Data Studio > visualize data
• Save query > Save query data in project
• CREATE OR REPLACE TABLE [dataset].[tablename] AS [SQL QUERY] to save the data into a table, saving you having to rerun the query every time
• In the above, you could replace TABLE with VIEW, to just store the query itself. Helpful if the data is changing a lot.

Cloud Dataprep

Provides data on data quality. It provides for instance data which is skewed in a dataset, missing values (example : state missing in stations adresses, but as the data is coming from all over the world state is an optional field). Provides data cleansing, etc.

10. SQL Array and Structs

Splitting the data into different tables requires joins or, possibly, denormalization.

To avoid this, we can use two features:

SQL Structs (Records)

These are a datatype that is essentially a collection of fields. You can think of it like a table inside another table.

Array Datatype

Lets you have multiple fields associated with a single row.

11. ML Model

Some terms…

• Instance/observation: A row of data in the table
• Label: Correct answer known historically (e.g., how much this customer spent), in future data this is what you want to know
• Feature columns: Other columns in the table (i.e., used in model, but you don’t want to predict them)
• One hot encoding: Turning enums into a matrix of 1s so a not to skew the model

BigQuery ML (BQML)

In BigQuery, we can build models in SQL.

First, build the model in SQL:

CREATE MODEL numbikes.model
OPTIONS
(model_type='linear_reg', labels=['num_trips']) AS
WITH bike_data AS
(
SELECT COUNT(*) a num_trims,
...

Second, write a SQL prediction query:

SELECT predicted_num_trips, num_trips, trip_date
FROM
ml.PREDICT(MODEL 'numbikes.model...

BigQuery’s SQL models will:

1. Auto-tune learning rate
2. Auto-splits data into training and test (though these hyperparameters can be set manually too)

Process

The general process looks like this:

1. Get data into BigQuery
2. Preprocess features (select features) — create training set
3. Create model in BigQuery (CREATE MODEL)
4. Evaluate model
5. Make predictions with model (ML.predict)

BQML Cheatsheet

• Label: Alias a column as ‘label’, or specify column(s) in OPTIONS using input_label_cols (reminder: labels are what is currently known in training data, but what you want to predict)
• Feature: Table columns used as SQL SELECT statement (SELECT * FROM ML.FEATURE_INFO(MODEL ``mydataset.mymodel``) to get info about that column after model is trained)
• Model: An object created in BigQuery that resides in BigQuqery dataset
• Model Types: Linear regression (predict on numeric field), logistic regression (discrete class — high or low, spam not spam, etc.) (CREATE OR REPLACE MODEL <dataset>.<name> OPTIONS(model_type='<type>') AS <training dataset>)
• Training Progress: `SELECT * FROM ML.TRAINING_INFO(MODEL “mydataset.mymodel“`
• Inspect Weights: SELECT * FROM ML.WEIGHTS(MODEL ``mydataset.mymodel``, (<query>))
• Evaluation: `SELECT * FROM ML.EVALUATE(MODEL mydataset.mymodel)
• Prediction: SELECT * FROM ML.PREDICT(MODEL ``mydataet.mymodel``, (<query>))

Lab 3

Get the conversion rate:

WITH visitors AS(
SELECT
COUNT(DISTINCT fullVisitorId) as total_visitors
FROM `data-to-insights.ecommerce.web_analytics`
),

purchasers AS(
SELECT
COUNT(DISTINCT fullVisitorId) as total_purchasers
FROM `data-to-insights.ecommerce.web_analytics`
WHERE totals.transactions IS NOT NULL
)

SELECT
total_visitors,
total_purchasers,
total_purchasers/total_visitors as conversion_rate
FROM visitors, purchasers

Find the top 5 selling products:

SELECT
p.v2ProductName,
p.v2ProductCategory,
SUM(p.productQuantity) AS units_sold,
ROUND(SUM(p.localProductRevenue/1000000),2) AS revenue
FROM `data-to-insights.ecommerce.web_analytics`,
UNNEST(hits) AS h,
UNNEST(h.product) AS P
GROUP BY 1,2
ORDER BY revenue DESC
LIMIT 5;

This query:

1. Creates a table containing a row for all of hits UNNEST(hits)
2. Creates a table containing all of the products in hits UNNEST(h.product)
3. Select the various fields
4. Groups by product name and product category

The UNNEST keyword takes an array and returns a table with a single row for each element in the array. OFFSET will help to retain the ordering of the array.

SELECT *
FROM UNNEST(['foo', 'bar', 'baz', 'qux', 'corge', 'garply', 'waldo', 'fred'])
  AS element
WITH OFFSET AS offset
ORDER BY offset;

+----------+--------+
| element  | offset |
+----------+--------+
| foo      | 0      |
| bar      | 1      |
| baz      | 2      |
| qux      | 3      |
| corge    | 4      |
| garply   | 5      |
| waldo    | 6      |
| fred     | 7      |
+----------+--------+

GROUP BY 1,2 refers to the first and second items in the select list.

Analytics schema:

https://support.google.com/analytics/answer/3437719?hl=en

Create the model

CREATE OR REPLACE MODEL `ecommerce.classification_model`
OPTIONS
(
model_type='logistic_reg', # Since we want to classify as A/B
labels = ['will_buy_on_return_visit'] # Set the thing we want to predict
)
AS

#standardSQL
SELECT
  * EXCEPT(fullVisitorId)
FROM

  # features
  (SELECT
    fullVisitorId,
    IFNULL(totals.bounces, 0) AS bounces,
    IFNULL(totals.timeOnSite, 0) AS time_on_site
  FROM
    `data-to-insights.ecommerce.web_analytics`
  WHERE
    totals.newVisits = 1
    AND date BETWEEN '20160801' AND '20170430') # train on first 9 months
  JOIN
  (SELECT
    fullvisitorid,
    IF(COUNTIF(totals.transactions > 0 AND totals.newVisits IS NULL) > 0, 1, 0) AS will_buy_on_return_visit
  FROM
      `data-to-insights.ecommerce.web_analytics`
  GROUP BY fullvisitorid)
  USING (fullVisitorId)
;

After running, the query will create a new ML model in project:dataset.model

EXCEPT will return all of the rows in the left query not in the right query.

For example:

  WITH a AS (
SELECT * FROM UNNEST([1,2,3,4]) AS n

    ), b AS (
SELECT * FROM UNNEST([4,5,6,7]) AS n)

SELECT * FROM a

EXCEPT DISTINCT

SELECT * FROM b

-- | n |
-- | 1 |
-- | 2 |
-- | 3 |

Evaluate the model

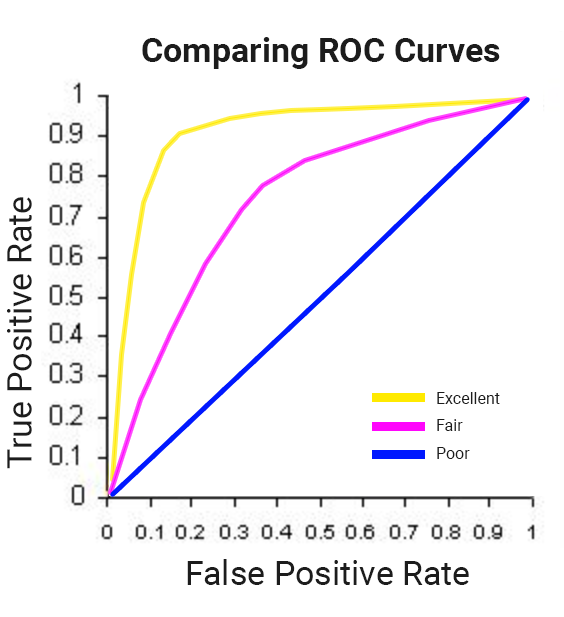

One feature we can use to evaluate the model is the receiver operating characteristic (ROC). Essentially this shows the quality of a binary classifier by mapping true positive rates against false positive rates.

We want to get the area under the curve as close as possible to 1.0

https://cdn.qwiklabs.com/GNW5Bw%2B8bviep9OK201QGPzaAEnKKyoIkDChUHeVdFw%3D

SELECT
  roc_auc,
  CASE
    WHEN roc_auc > .9 THEN 'good'
    WHEN roc_auc > .8 THEN 'fair'
    WHEN roc_auc > .7 THEN 'not great'
  ELSE 'poor' END AS model_quality
FROM
  ML.EVALUATE(MODEL ecommerce.classification_model,  (

SELECT
  * EXCEPT(fullVisitorId)
FROM

  # features
  (SELECT
    fullVisitorId,
    IFNULL(totals.bounces, 0) AS bounces,
    IFNULL(totals.timeOnSite, 0) AS time_on_site
  FROM
    `data-to-insights.ecommerce.web_analytics`
  WHERE
    totals.newVisits = 1
    AND date BETWEEN '20170501' AND '20170630') # eval on 2 months
  JOIN
  (SELECT
    fullvisitorid,
    IF(COUNTIF(totals.transactions > 0 AND totals.newVisits IS NULL) > 0, 1, 0) AS will_buy_on_return_visit
  FROM
      `data-to-insights.ecommerce.web_analytics`
  GROUP BY fullvisitorid)
  USING (fullVisitorId)

));

roc_auc is a queryable field

Improving the model

We can improve the model by adding more features:

CREATE OR REPLACE MODEL `ecommerce.classification_model_2`
OPTIONS
  (model_type='logistic_reg', labels = ['will_buy_on_return_visit']) AS

WITH all_visitor_stats AS (
SELECT
  fullvisitorid,
  IF(COUNTIF(totals.transactions > 0 AND totals.newVisits IS NULL) > 0, 1, 0) AS will_buy_on_return_visit
  FROM `data-to-insights.ecommerce.web_analytics`
  GROUP BY fullvisitorid
)

# add in new features
SELECT * EXCEPT(unique_session_id) FROM (

  SELECT
      CONCAT(fullvisitorid, CAST(visitId AS STRING)) AS unique_session_id,

      # labels
      will_buy_on_return_visit,

      MAX(CAST(h.eCommerceAction.action_type AS INT64)) AS latest_ecommerce_progress,

      # behavior on the site
      IFNULL(totals.bounces, 0) AS bounces,
      IFNULL(totals.timeOnSite, 0) AS time_on_site,
      totals.pageviews,

      # where the visitor came from
      trafficSource.source,
      trafficSource.medium,
      channelGrouping,

      # mobile or desktop
      device.deviceCategory,

      # geographic
      IFNULL(geoNetwork.country, "") AS country

  FROM `data-to-insights.ecommerce.web_analytics`,
     UNNEST(hits) AS h

    JOIN all_visitor_stats USING(fullvisitorid)

  WHERE 1=1
    # only predict for new visits
    AND totals.newVisits = 1
    AND date BETWEEN '20160801' AND '20170430' # train 9 months

  GROUP BY
  unique_session_id,
  will_buy_on_return_visit,
  bounces,
  time_on_site,
  totals.pageviews,
  trafficSource.source,
  trafficSource.medium,
  channelGrouping,
  device.deviceCategory,
  country
);

Point: Ensure you use the same training data. Otherwise differences could be due to differences in input, rather than model improvements.

Now we have a better model, we can make predictions.

Make predictions

SELECT
*
FROM
  ml.PREDICT(MODEL `ecommerce.classification_model_2`,
   (

WITH all_visitor_stats AS (
SELECT
  fullvisitorid,
  IF(COUNTIF(totals.transactions > 0 AND totals.newVisits IS NULL) > 0, 1, 0) AS will_buy_on_return_visit
  FROM `data-to-insights.ecommerce.web_analytics`
  GROUP BY fullvisitorid
)

  SELECT
      CONCAT(fullvisitorid, '-',CAST(visitId AS STRING)) AS unique_session_id,

      # labels
      will_buy_on_return_visit,

      MAX(CAST(h.eCommerceAction.action_type AS INT64)) AS latest_ecommerce_progress,

      # behavior on the site
      IFNULL(totals.bounces, 0) AS bounces,
      IFNULL(totals.timeOnSite, 0) AS time_on_site,
      totals.pageviews,

      # where the visitor came from
      trafficSource.source,
      trafficSource.medium,
      channelGrouping,

      # mobile or desktop
      device.deviceCategory,

      # geographic
      IFNULL(geoNetwork.country, "") AS country

  FROM `data-to-insights.ecommerce.web_analytics`,
     UNNEST(hits) AS h

    JOIN all_visitor_stats USING(fullvisitorid)

  WHERE
    # only predict for new visits
    totals.newVisits = 1
    AND date BETWEEN '20170701' AND '20170801' # test 1 month

  GROUP BY
  unique_session_id,
  will_buy_on_return_visit,
  bounces,
  time_on_site,
  totals.pageviews,
  trafficSource.source,
  trafficSource.medium,
  channelGrouping,
  device.deviceCategory,
  country
)

)

ORDER BY
  predicted_will_buy_on_return_visit DESC;
